Parallel Plate Capacitor Demonstrator, Each

Details

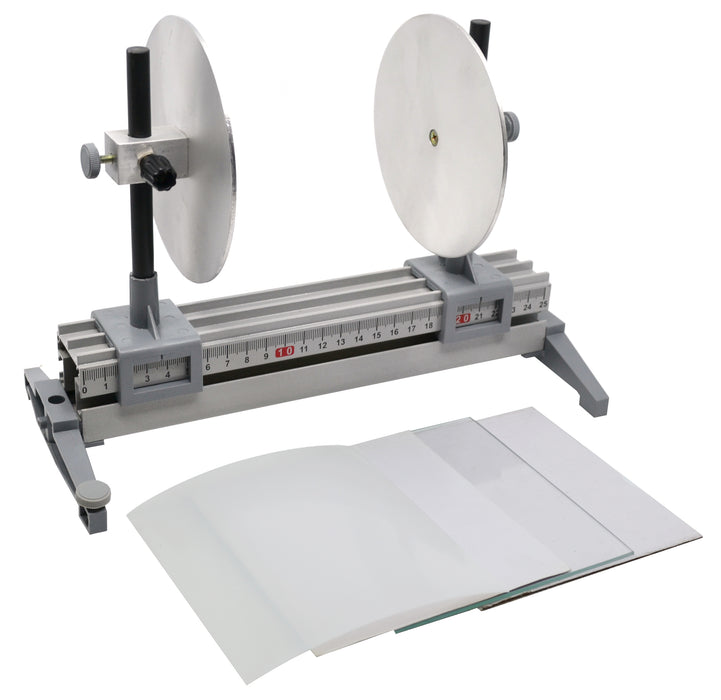

Parallel Plate Capacitor Apparatus with Three Dielectric Materials: Glass, Cardboard, and Lucite. This apparatus is used to study the principle of capacitance, its relationship with charge and voltage, and its dependence on the surface area of conductors. It consists of two 120mm circular metal discs mounted on insulated supports that slide along an extruded aluminum section. The distance between the two plates and the height of the plates are easily adjustable. The apparatus is easy to assemble, and the markings are easy to read. The apparatus measures approximately 11 inches long, 8 inches tall, and 6 inches wide.
